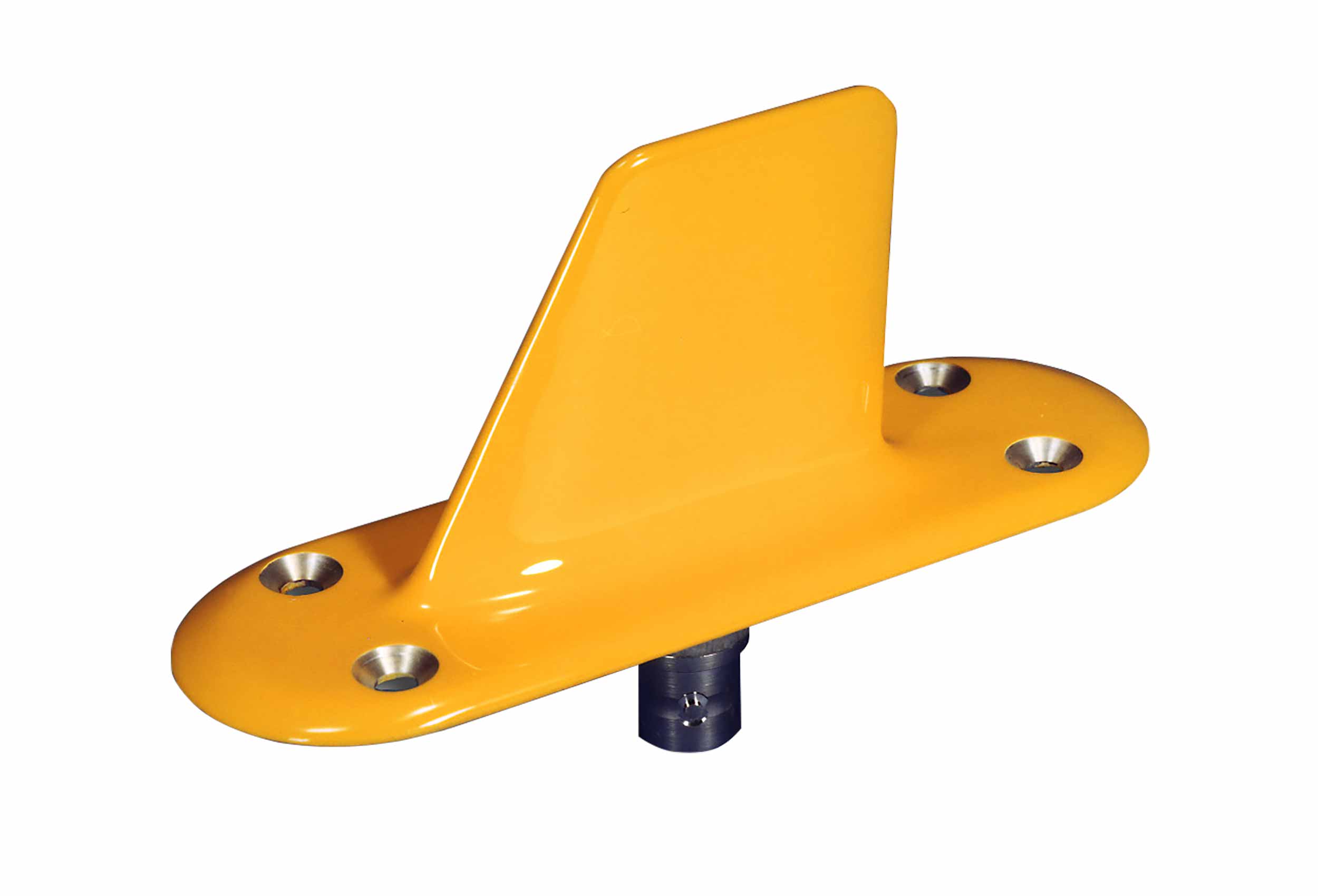

1601354 L-Band Antenna

Radiation Pattern and Gain

The radiation pattern is adjusted omnidirectional. It has forward directivity to improve gain for ASAS, BCAS and TCAS. This adjustment in pattern and in gain improves reception and transmission characteristics while still meeting the following ARINC characteristics:

  • 709-1 (Distance Measuring Equipment)
  • 718 (Air Traffic Control Transponder)
  • 730 (ASAS)

A slightly eccentric radiation pattern allows the forward gain to approximate that of a vertically polarized quarter wave stub. The rearward gain is within 2.5 decibels below the forward gain.

F/A-18 Aircraft

Key Features

At least one L3Harris antenna is standard equipment on nearly every U.S. military aircraft flying today.

01

Extremely high side-load strength guards against breakage by ground handling gear

02

Completely sealed construction prevents moisture incursion failure

03

Lightning protection circuits prevent damage to antenna and safeguards electronic equipment

1601354 L-Band Antenna Specifications

Electrical
Frequency range 960-1220 MHz
VSWR 1.8:1 at 960-1220 MHz; 1.42:1 at 1000-1100 MHz
Impedence 50 Ohms
Polarization Vertical
DC resistance Short circuit
Power handling 250 watts CW, 3 kW peak
Mechanical
Connector C Female
Weight 0.32 lbs (0.15 kg)
Part no. 1601354-001 (yellow), 1601354-002 (orange)
Environmental
TSO C66b, C74c, C112, C119
DO-160C category E1-ABCXWFDFSXXXXXXXX1AX
