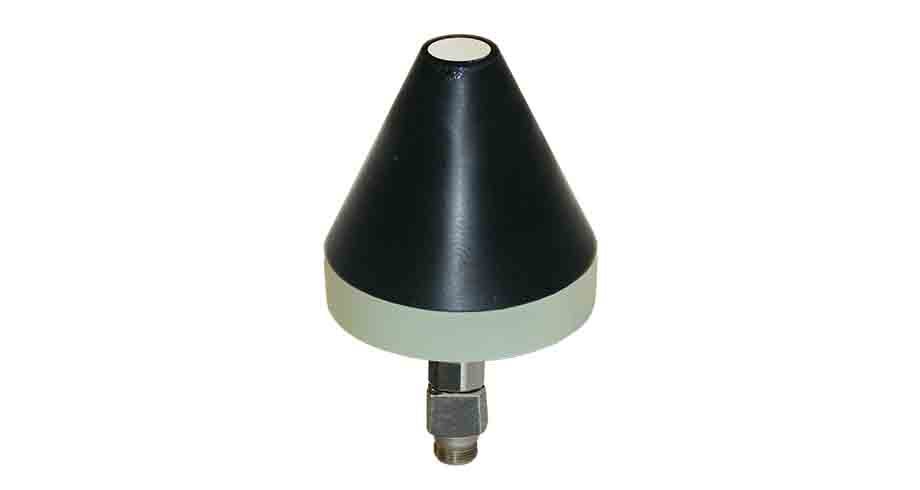

AS-48192 Linearly Polarized Log-Periodic Antenna

Completely waterproof, all circuit elements are firmly foamed in place inside a low-loss, fiberglass radome. This construction provides a clean profile and rugged durability for airborne, ship or ground, fixed or mobile installations. Applications include surveillance, ESM, RFI, EMC and TEMPEST Testing.

Features:

  • Ultra-Broadband Log-Periodic Antenna
  • Compact and Rugged Construction
  • Surveillance and Direction-Finding Applications

AS-48192 Antenna Specifications

Electrical
Frequency Range 8 to 40 GHz
VSWR 3.0:1 nom
Gain 6 dBi nom
Polarization Linear
Impedance 50 ohms
Cross Polarization 15 dB nom
Power Handling 5 watts CW
Mechanical
Connector K Female
Radome NORYL 731
