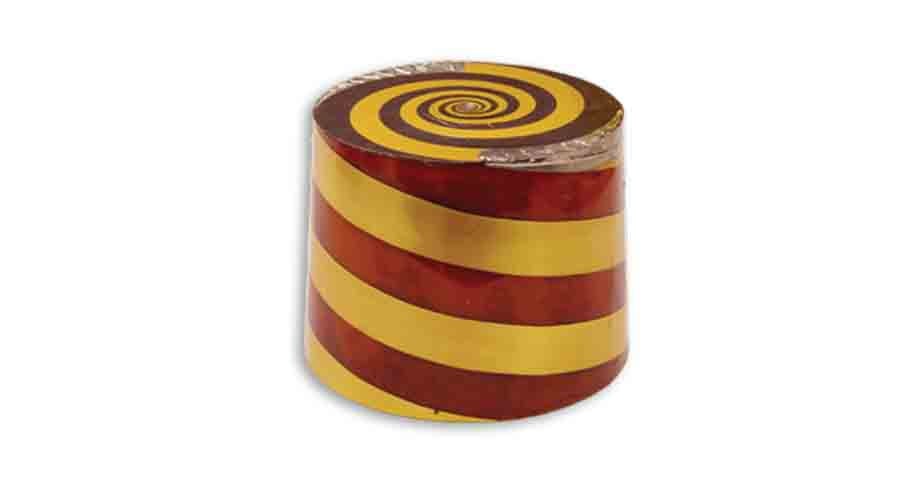

AS-48611 Wideband Circularly Polarized Spiral Helix Antenna

This capability is achieved by combining the radiating characteristics of both the planar spiral and helix into a single assembly, thereby more effectively utilizing the volume.

The axial ratio is extremely low over the majority of the radiation pattern. This performance characteristic, as well as a good radiating efficiency, makes the AS-48611 antenna very suitable as a broadband reflector feed or as a sector element in full azimuthal DF arrays. The AS-48611 is also useful down to 0.40 GHz, with reduced gain.

The AS-48611 is designed to meet the rigorous environments imposed by MIL-E-5400 and MIL-E-16400. It is a highly reliable maintenance-free antenna adaptable to a variety of platforms.

Features:

  • Broad Frequency Coverage
  • Small size
  • Lightweight
  • Right-hand or left-hand circular polarization available

AS-48611 Antenna Specifications

Electrical
Frequency Range 0.5 to 18 GHz
VSWR 2.5:1 typ 3.0:1 max
Gain See graph on spec sheet
Polarization
-01
-03

RHCP
LHCP
Beamwidth 3 dB See graph on spec sheet
Axial Ratio 2dB Typical at Boresight
Power Handling Receive Only
Mechanical
Connector SMA Right-Angle Jack (Female)
Weight 0.35 lbs/0.16 kg
