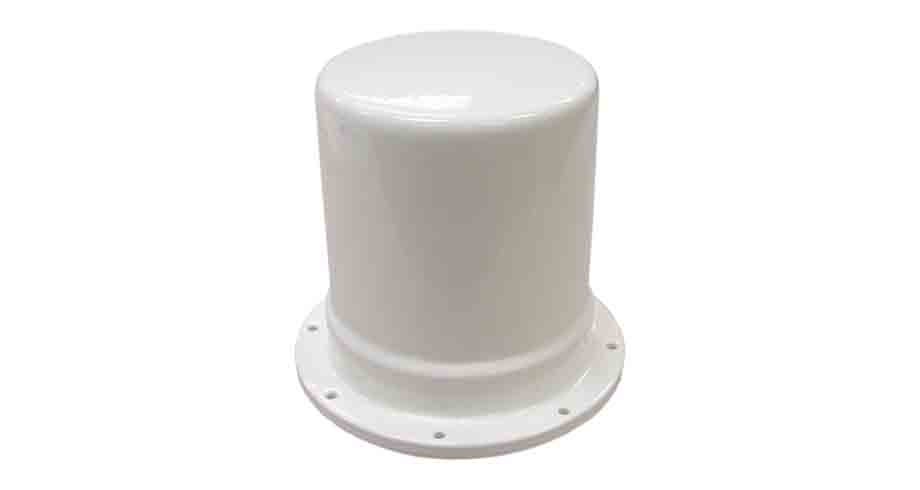

AS-48951 Omnidirectional Antenna

The polarization is 45° slant linear, allowing reception of right-hand circular, left-hand circular, vertically, and horizontally polarized signals from a single connector.

The AS-48951 Antenna is ideally suited to applications where size, weight, and, with an optional heavy-duty radome, rugged construction are needed to provide broad frequency reception.

Features:

Small Physical Size
Lightweight Rugged Constructionn
Full 0.5 to 18 GHz Coverage
Simultaneous Horizontal, Vertical, RHC, LHC Polarization

AS-48951 Specifications

Electrical

Frequency Range

0.5 to 18 GHz (usable to 26 GHz)

VSWR

3.0:1 max, 2 to 18 GHz
5.5:1 max, 18 to 26 GHz
6.0:1 max, 1 to 2 GHz
9.0:1 max, 0.5 to 1 GHz

Gain, Average (min)
18 to 26 GHz
12 to 18 GHz
8 to 12 GHz
4 to 8 GHz
2 to 4 GHz
0.5 to 2 GHz

HORIZONTAL	VERTICAL	MATCHED
-3 dBi (-8 dBi)	0 dBi (-8 dBi)	+4 dBi (0 dBi)
-3 dBi (-8 dBi)	-4 dBi (-6 dBi)	+2.5 dBi (0 dBi)
-4 dBi (-8 dBi)	-4 dBi (-6 dBi)	-4 dBi (-6 dBi)
-8 dBi (-13 dBi)	-7 dBi (-13 dBi)	-5 dBi (-8 dBi)
-8 dBi (-17 dBi)	-10 dBi (-31 dBi)	-6 dBi (-17 dBi)
>-20 dBi over	>-18 dBi over	>-19 dBi over
75% of Band	70% of Band	80% of Band (-32 dBi)

Impedance

50 ohms

Polarization

Slant linear

Deviation From Omni

±3 dB over 90° of frequency range

Beamwidth

360° azimuth 20° or more elevation

Power Handling

Receive only

Mechanical
Connector	SMA Female
Weight	4 lbs/1.8 kg
Finish	White Polyurethane
