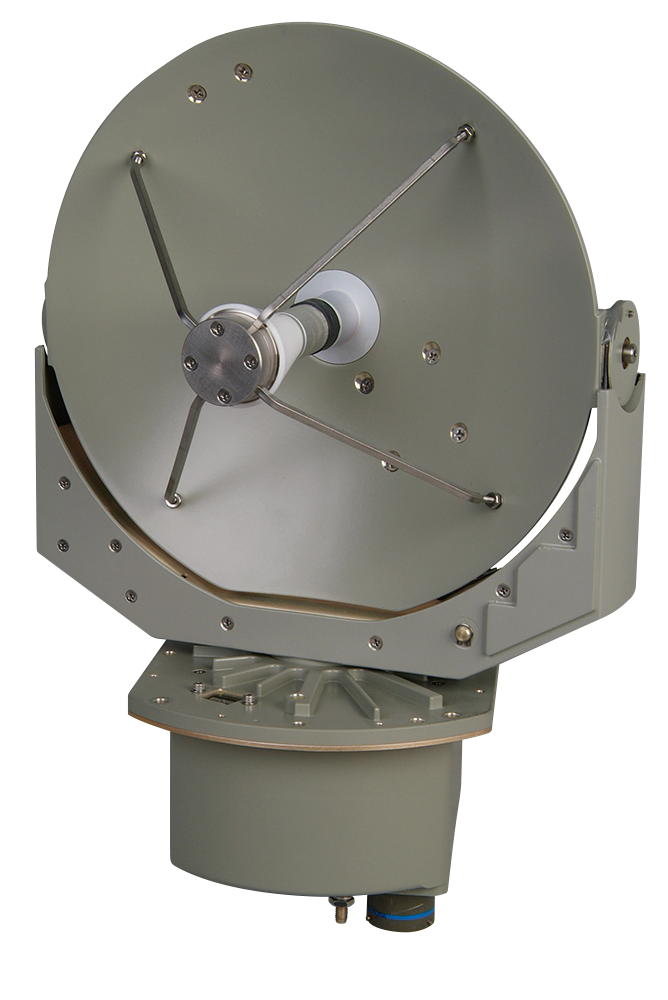

9.5" Directional Ku-Band Antenna

The 9.5" Directional Antenna is a low-profile, low-drag solution to implementing CDL and STANAG 7085 systems where long-range and high-availability requirements necessitate the use of airborne directional antennas. The 9.5" Directional Antenna offers 26 dBi of gain and is right-hand circularly polarized.

Product Customization

The 9.5" Directional Antenna is a member of the L3Harris data link product family, but it can be used for any application requiring a Ku-band, high-gain, two-axis antenna. The antenna interfaces with 28 VDC standard power, a standard RF coaxial connector and an RS-485 antenna control port.

The antenna consists of the following major components:

  • A directional radiating RF element
  • RF interconnecting components
  • A two-degrees-of-freedom antenna pedestal for pointing
  • Motors and angular position feedback sensors
  • An electronic module for motor drive, position-sensing interface, data interfaces and power conversion

The antenna pedestal operates as a pointing antenna, receiving its positioning commands over the RS-485 bus at up to 20 times per second, ensuring precise pointing even during dynamic airborne maneuvers. The two-degrees-of-freedom pedestal ensures proper pointing at long and short ranges.

The antenna assembly uses nonvolatile memory to store user-defined boresight offsets as necessary. The antenna contains built-in test capability to detect 95 percent of possible faults and report the results of the test on the RS-485 status bus.

Key Features

Features:

  • Reliable, low-cost, two-axis gimble
  • High-efficiency parabolic reflector
  • Compact, high-gain design

Benefits:

  • Rapid pointing capabilities maintain link through flight dynamics
  • Highest gain in class, maximizing throughput and range

Downloads

  • 9.5" Directional Ku-band Antenna

    9.5" Directional Ku-band Antenna Sell Sheet
