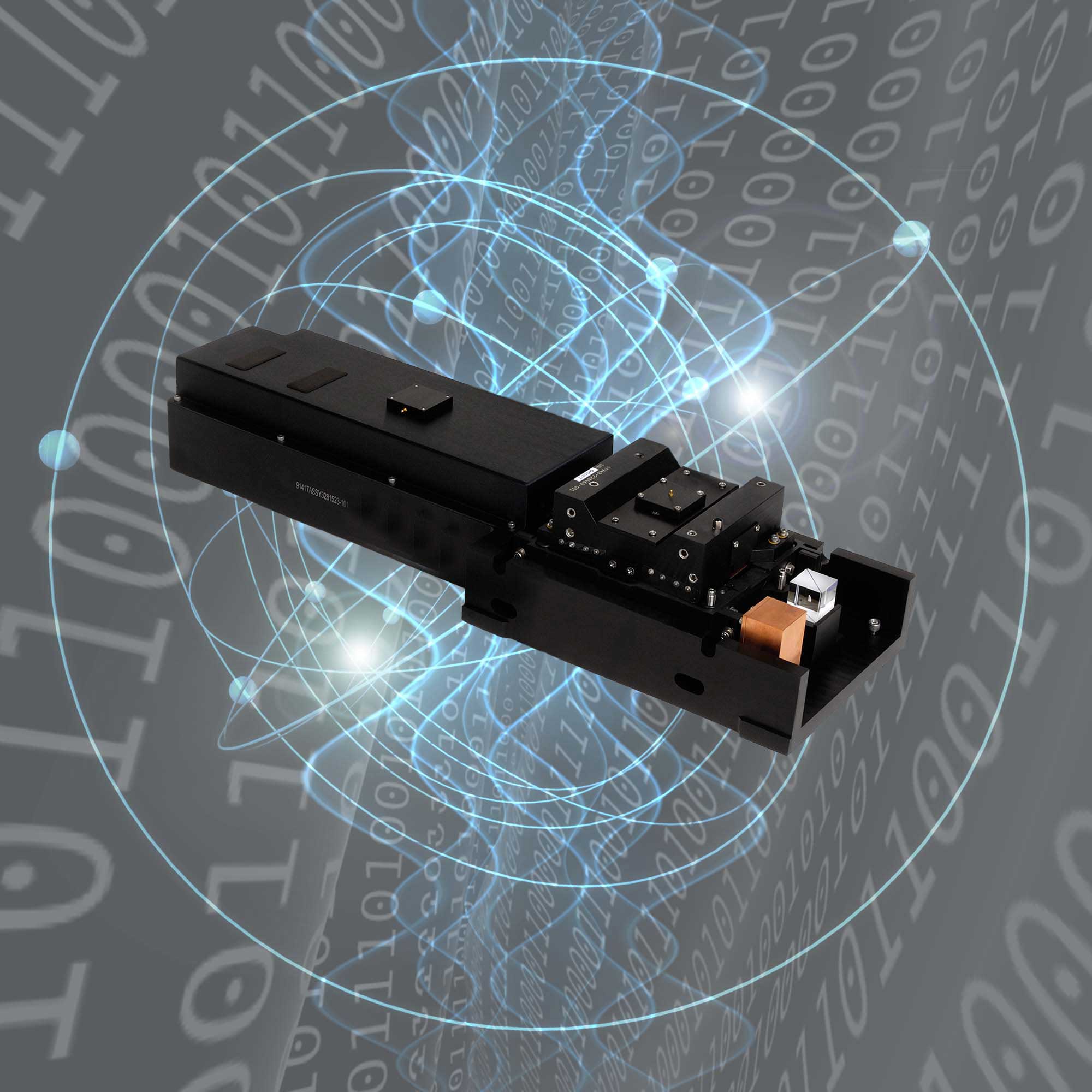

L3Harris Illumination Modules
Our internal research and development efforts and collaborative work with the University of Maryland and Duke University resulted in the first experimental system that supports up to 32 quantum bit (qubit) photonic-controlled ion-trap quantum computing with our multi-channel AO illumination module. This robust multi-channel AO illumination module provides the capability for using AO technology to perform the multi-qubit entangling operations and error correction needed for ion-trap based quantum computing and quantum state manipulation.
Our 32-channel AO modulators (AOMs) require a single 355 nm beam input and output 32 channels of individually modulated 355 nm light. The stable base mount assembly offers precision opto-mechanical alignment with input adjustment. Other wavelengths are also supported with some customization of components.
The modules also include optional auto input alignment, a 355 nm diffractive optical element, transform telescope for tele-centric input of 32 beams into the modulator, and a timing and Bragg adjusted AOM with 32 AOM modulated beams output. Purge covers are also provided to prevent dust and particle contamination by continuous flow of dry nitrogen or dry air. Optional RF drivers allow programmed switching of the radio frequency (RF) channels to the 32-channel RF drivers.
