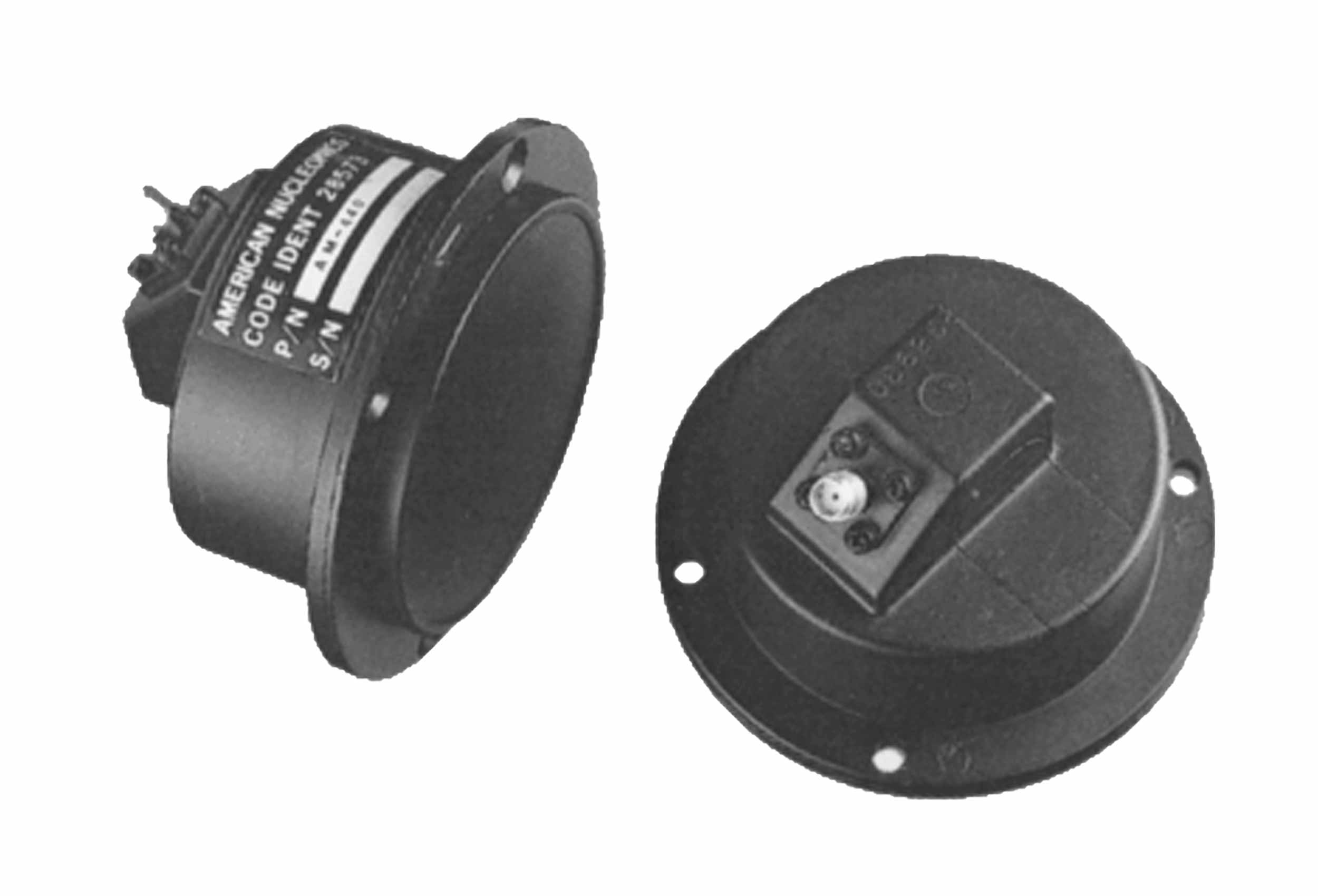

AM-440 Antenna Specifications
| Frequency Range | 2.0 – 18.0 GHz |
| VSWR | 3.0:1 nom |
| Gain | +1.0 dBli nom |
| Gain Tracking | ±1.0 dB on axis |
| Beam width (3 dB) | 75° ±15° typ |
| Polarization | Circular, LHCP or RHCP available |
| Axial Ratio Boresight ±45° |
≤1.5 dB on axis ≤3.0 dB |
| Squint | ±5° |
| Power Handling | 1 watt CW |
| Connector | SMA female at 40° angle to boresight |
| Weight | 4.3 oz. |
| Finish | Semigloss black enamel on epoxy base primer |
| Option: | LHCP or RHCP available |
