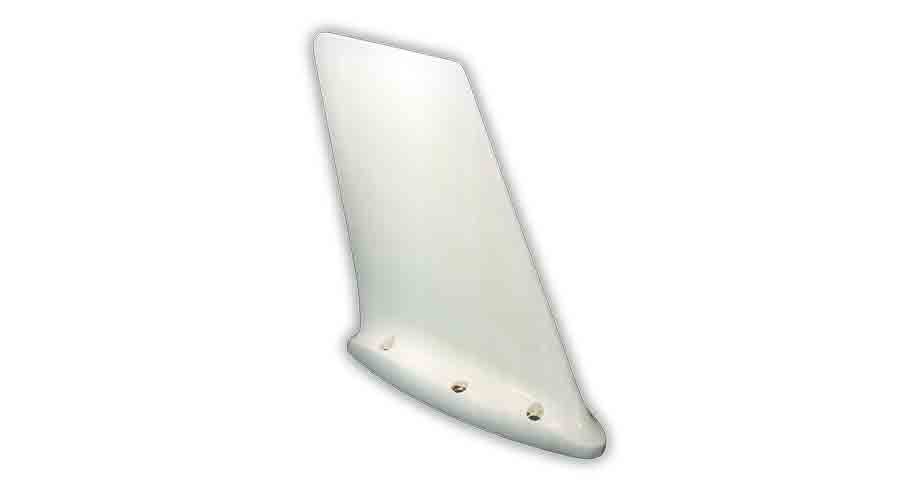

C144 Series UHF / VHF Multiband Communication Antenna

The C144-1 models feature a single input covering VHF and UHF functions while the C144-5 model includes internal diplexing and provides separate outputs for VHF and UHF functions.

The unique electrical design of the VHF/FM band results in higher gain than would typically be expected from a broadband, fixed tuned antenna of its height in the 30 to 400 MHz range.

The moderate sweep angle design of the C144 antenna provides low drag while maintaining omnidirectional coverage in the upper UHF frequency range.

C144 Series Antenna Specifications

Electrical
	C144-1 Series	C144-5 Series
Frequency range
VHF	30 – 88 MHz 108 – 174 MHz	116 – 152 MHz
UHF	225 – 400 MHz	225 – 400 MHz
VSWR
	30 – 88 MHz 2.6:1	116 – 152 MHz 2.6:1 MAX
	108 – 155 MHz 2.6:1	225 – 400 MHz 2.6:1 MAX
	155 – 174 MHz 2.3:1
	225 – 400 MHz 2.3:1	N/A
Gain
	30 – 88 MHz -24 to -12 dBi	-116 – 152 MHz -6 to 0
	108 – 174 MHz -8 to 0 dBi	225 – 400 MHz 0 to +2
	225 – 400 MHz 0 to +2.0 dBi
Impedance	50 ohms	50 ohms
Polarization	Vertical	Vertical
Radiation patterns	Typical of a monopole	Typical of a monopole
Isolation	N/A	20 dB min
Power Handling	40 Watts CW	40 Watts CW

Mechanical
	C144-1 Series	C144-5 Series
Connector
VHF	40 Watts CW	BNC Female
UHF		TNC Female
Weight	2.5 lbs (1.13 kg) max	3.25 lbs max
Finish
C144-1-1	White
C144-1-2	Black
C144-1-4	Gray
C144-5-1		White
