L3Harris offers off-the-shelf as well as custom designed multi-band communication, navigation, satellite communications (SATCOM), electronic support measures, EW and telemetry antennas for any mission.
L3Harris Aircraft Antenna
Key Features
At least one L3Harris antenna is standard equipment on nearly every U.S. military aircraft flying today.
01
Broadband element design
02
Continuous L1 to L2 frequency band coverage
03
Fighter aircraft qualified
04
Rugged rain-erosion resistant radome

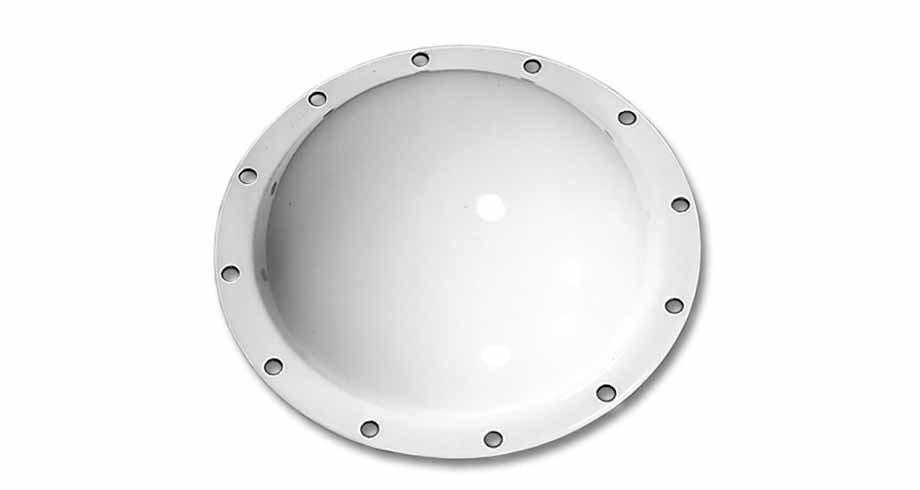

C146-24-1 Antenna Specifications
For further details and specifications, contact the factory at antenna.info@L3Harris.com.
| GPS | Glonass | Galileo | |
|---|---|---|---|
| Frequency range | L1: 1560 - 1590 MHz L2: 1212 - 1242 MHz L5: 1176 MHz |
1237 - 1254 MHz 1593 - 1610 MHz |
E5 A, B: 1164 - 1215 MHz E3, E4, E6: 1254 - 1300 MHz E2: 1559 – 1563 MHz E1: 1587 – 1591 MHz |
| VSWR | L1, L2: 1.5:1 L5: 1.8:1 |
1.5:1 | 1.8:1 max |
| Gain @ + 5° Elevation @ Peak |
L1, L2: -4 dBic, L5: -5 dBic L1 +3.5 dBic; L2, L5: 0 dBic |
- 4 dBic + 1 dBic |
E5 A, B: -5 dBic; Balance -4 dBic E5 +1 dBic; Balance 0 dBic |
| Impedance | 50 ohms | ||
| Polarization | Right-hand circular polarization | ||
| Radiation patterns |
Omnidirectional – Azimuth Hemispherical – Vertical |
||
| Power handling | Receive only | ||
| Weight | 0.5 lbs |
