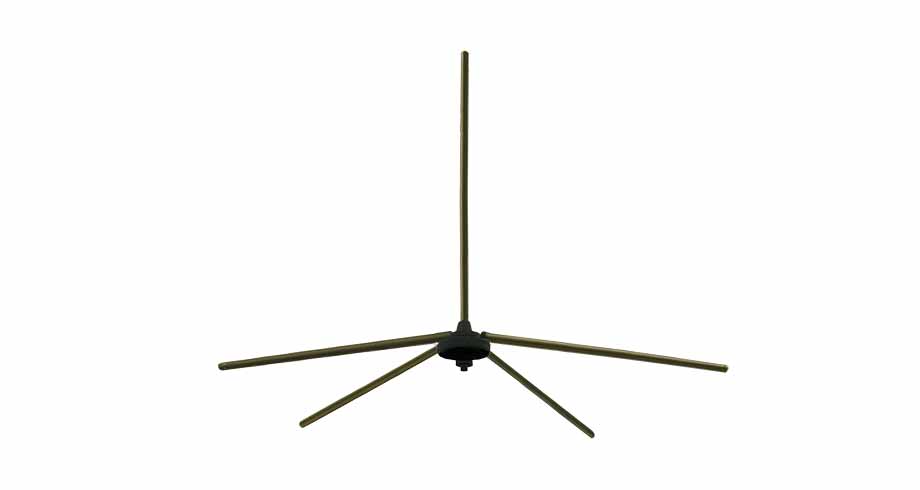

The antenna is compact in design, only 20 inches length and 4.75 inches in diameter when the radial ground plane elements are folded. The antenna base provides a threaded interface above the connector which allows the antenna to be mounted on a mast.
C206 Antenna Specifications
| Frequency Range | 138 – 152 MHz 310 – 315 MHz |
| VSWR | 2.5:1 |
| Gain | 1.0 dBi |
| Impedance | 50 Ohms |
| Polarization | Vertical |
| Power Handling | 25 Watts |
| Connector | TNC Female |
| Weight | 1.5 lbs max (0.68 kg) |
| Finish | Olive drab FED-STD-595 color range 34096 to 34127 |
| Operating Temperature | 25° C to +52° C |
