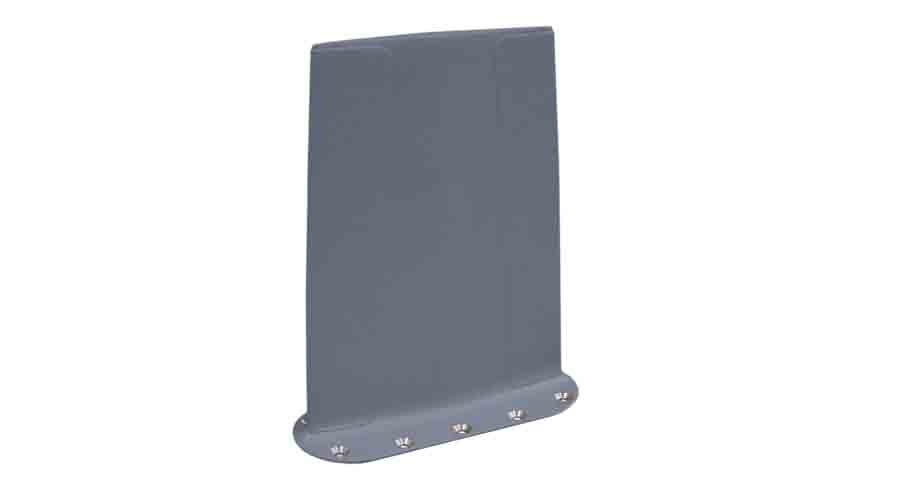

C215-2-1 VHF / UHF Antenna System

This results in increase system range along with decreased drag and weight.

The antenna is composed of a high strength fiberglass housing and an aluminum base casting to withstand all military airborne environments.

The total system is designed, manufactured and tested by L3Harris, a company known for high performance aircraft products throughout the world.

Qualified for A-6, A-10, F-14, F-15, F-16, F-18, F-111 and most other aircraft.

C215-2-1 Antenna Specifications

Electrical
Frequency range 30 – 512 MHz
VSWR 2.5:1 max
Gain 30 – 88 MHz (-)42 dBi
108 – 174 MHz (-)15 dBi
225 – 512 MHz Similar to 1/4 stub
Impedence 50 ohms
Power handling 50 watts
Mechanical
Connectors TNC
Weight 32 oz (1 kg)
Environmental
Military MIL-E-5400
