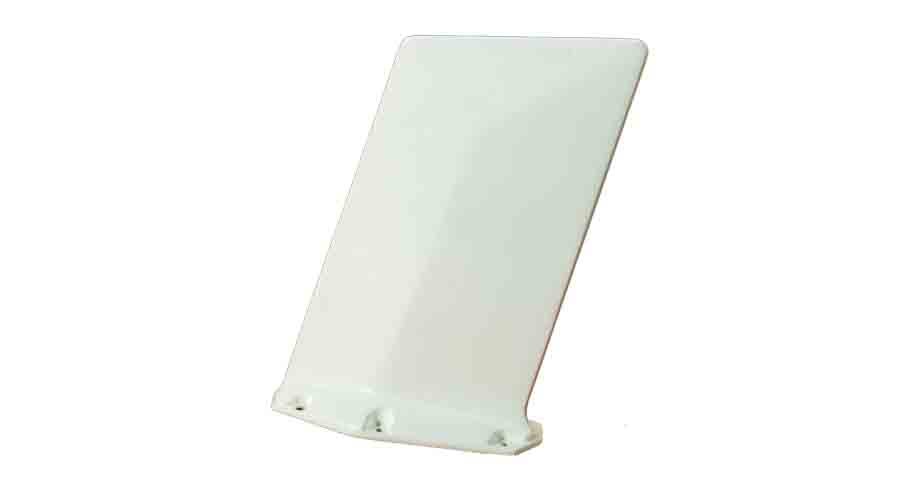

The antenna covers the frequency range of 118 to 137 MHz (-1) or 116 – 152 MHz (-17) for both transmitting and receiving applications. Electrical elements of the antenna are completely sealed by foamed-in-place resin within an outer fiberglass housing. As a result, the antenna is rugged enough for use on both commercial and general aviation aircraft.
C60 Series Antenna Specifications
| Frequency range -1 | 118 – 137 MHz |
| Frequency Range -3, -4, and -17 | 116 – 152 MHz |
| VSWR | 2.0:1 max |
| Gain | Equivalent to a quarter wave |
| Impedance | 50 ohms |
| Polarization | Vertical |
| Radiation pattern | Omnidirectional |
| dc Resistance | Grounded |
| Power handling | 50 watts |
| Weight | 1.6 lbs |
| Finish | White |
| C60-1 | C60-3 | C60-4 | C60-17 | |
| Connector | BNC Male | BNC Male | N Male | BNC Male |
| Drag, sea level at 250 mph | 0.5 lbs |
| Side load strength | Over 3 psi |
| Altitude performance | To 35,000 ft |
| TSO | C37d and C38d |
| D0160C ENV CAT. | F2-ABCXXXXXXXXXXXXXXXX |
