C99 Series Antenna

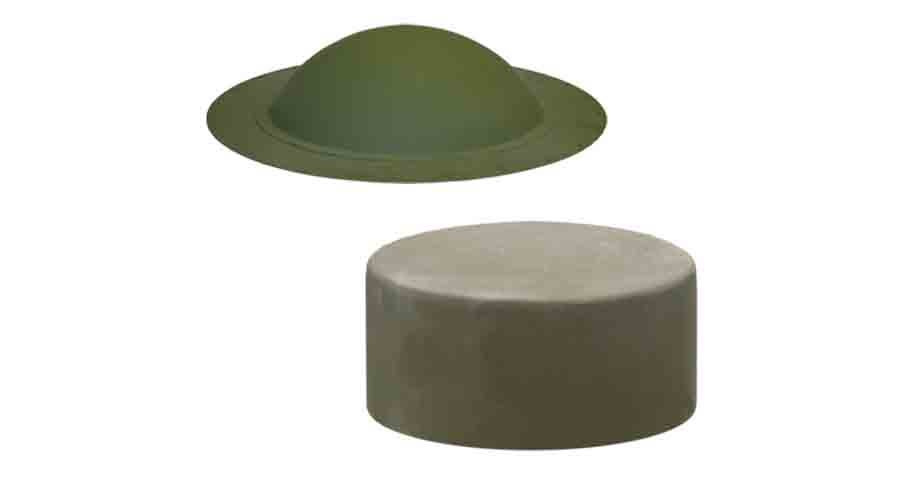

The C99 Series of antennas present a unique, low-silhouette configuration which produces a very broad beam radiation pattern with minimal gain variation over the entire upper hemisphere. Right-hand circular polarization is maintained throughout the hemisphere.

The C99 Series features other design parameters which complement its deployment. These units are constructed of lightweight materials for ease of handling and mounting, and are provided with lightning protection.

All configurations require the use of a load termination.

C99 Series Antenna Specifications

Download the C99 Series Spec Sheet
Electrical
  C99-2 C99-4 C99-5 C99-6 C99-11 C99-15-1 C99-16-1
Frequency range (MHz) 225 – 400 244 – 318 225 – 400 244 – 318 225 – 400 244 – 318 225 – 400
VSWR 1.5:1 1.5:1 1.5:1 1.5:1 1.5:1 1.5:1 1.5:1
Gain +2.0 dB nominal relative to circular isotropic +2.0 dB nominal relative to circular isotropic +2.0 dB nominal relative to circular isotropic +2.0 dB nominal relative to circular isotropic +2.0 dB nominal relative to circular isotropic +2.0 dB nominal relative to circular isotropic +2.0 dB nominal relative to circular isotropic
Impedance 50 ohms nom 50 ohms nom 50 ohms nom 50 ohms nom 50 ohms nom 50 ohms nom 50 ohms nom
Polarization Right-hand circular Right-hand circular Right-hand circular Right-hand circular Right-hand circular Right-hand circular Right-hand circular
Radiation patterns Hemispherical Hemispherical Hemispherical Hemispherical Hemispherical Hemispherical Hemispherical
Load termination -002 -001 -002 -001 -002 -001 -002
Power handling 200 watts CW 200 watts CW 200 watts CW 200 watts CW 200 watts CW 200 watts CW 200 watts CW
Mechanical
  C99-2 C99-4 C99-5 C99-6 C99-11 C99-15-1 C99-16-1
Connector
Input N N N N N N N
Load TNC N TNC N TNC N TNC
Lightning protection MIL-B-5087 MIL-B-5087 MIL-B-5087 MIL-B-5087 MIL-B-5087 MIL-B-5087 MIL-B-5087
Weight (lbs) 13 7 13 7 15.5 8.4 20
Finish Olive drab Black Olive drab White Primer or Black Black Black
Environmental
  C99-2 C99-4 C99-5 C99-6 C99-11 C99-15-1 C99-16-1
Deployment Shelters Helicopter Trains Helicopter Helicopter Shipboard Helicopter
Qualification MIL-STD-810C MIL-STD-810C MIL-STD-810C MIL-STD-810C MIL-STD-810C MIL-STD-810C MIL-STD-810C
Military nomenclature: C99-2 AS-3439/G AS-3439/G AS-3439/G AS-3439/G AS-3439/G AS-3439/G AS-3439/G
Available options
1200018-001 N connector N connector N connector N connector N connector N connector N connector
1200018-002 TNC connector TNC connector TNC connector TNC connector TNC connector TNC connector TNC connector
