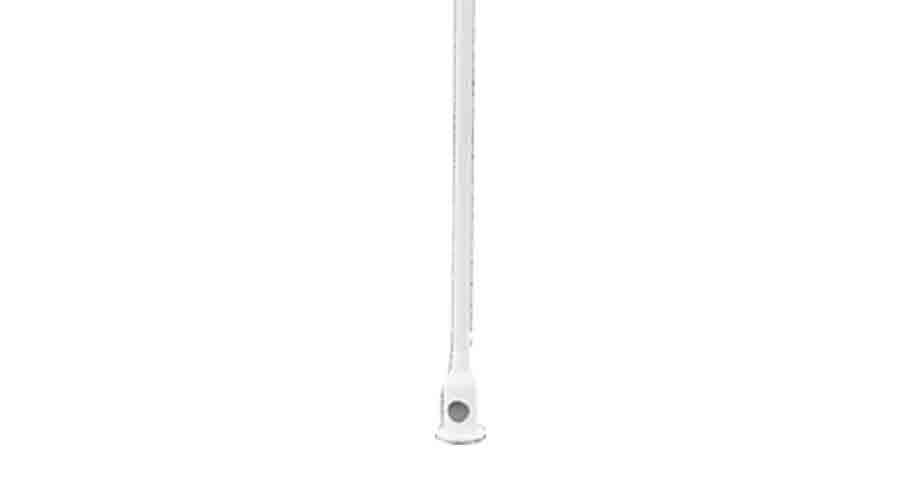

CA-1079 Series Low Power VHF / UHF Multichannel Antennas

Use of this antenna in multichannel communications systems can substantially reduce the total space requirements and significantly improve the overall system performance.

CA-1079 is intended to provide interference-free ground-to-air and ground-to-ground communications. Because of its inherent broadband characteristics, the unit is relatively insensitive to its mounting location and the surrounding environment. It has been designed to meet MIL-STD-167, Type I Vibration; and the Service Conditions of MIL-STD-810B (operating temperature -40° to +55°C).

CA-1079 Series Antenna Specifications

Electrical
Frequency range VHF Inputs UHF Inputs	115 – 162 MHz 225 – 400 MHz
VSWR	2.0:1 max
Gain	2.0 dB
Polarization	Vertical
Azimuth coverage	Omnidirectional within ±1 dB
Zenith Coverage	Figure-eight dipole pattern with maximum at horizon
Half-power beam width	80° nominal
RF isolation between channels	25 dB nominal
Power handling	50 watt average, each channel

Mechanical
	CA-1079 1U/2V	CA-1079 4U/1V	CA-1079 3U/2V	CA-1079 5U	CA-1079 3V
Connector	2 VHF 1 UHF	1 VHF 4 UHF	2 VHF 3 UHF	– VHF 5 UHF	3 VHF – UHF
Height (Nominal)	132 in	168 in	174 in	174 in	174 in
Radome Dia.	3.5 in	3.5 in	3.5 in	3.5 in	3.5 in
Base	6.5 in	6.5 in	6.5 in	6.5 in	6.5 in
Weight	25 lbs	40 lbs	40 lbs	40 lbs	40 lbs
Finish	White or Gray Epoxy	Green Epoxy	Green Epoxy	Green Epoxy	Green Epoxy
Various combinations of radiators not specifically detailed here are available. Please consult the factory for your specific requirement.
