The antennas are intended for use where independent, broadband, multichannel operation is required. The series offers configurations with two to six channels. Use of these antennas can substantially reduce total space requirements and significantly improve overall system performance.

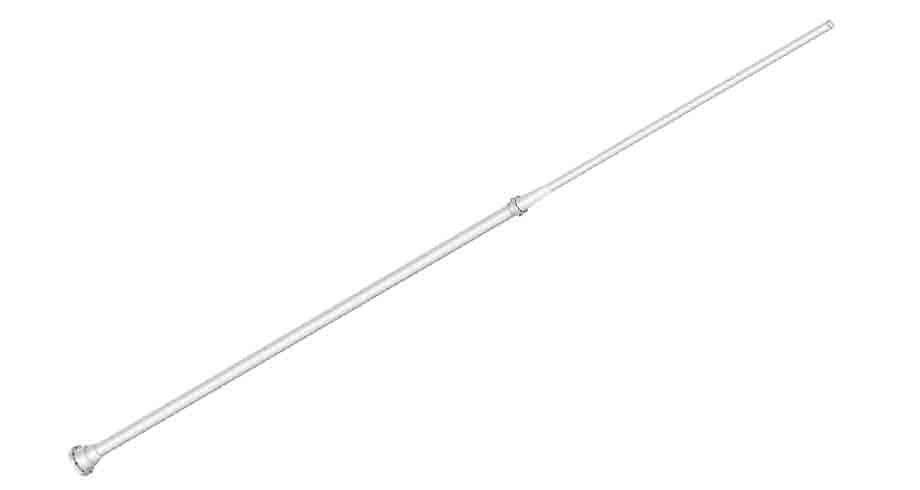

Each member of the series is comprised of base mounted, broadband, dipole units mounted colinearly within a sealed epoxy fiberglass housing. Size depends upon the number of signal channels desired. The minimum configuration is only 100 inches tall and provides two UHF channels. The maximum configuration is 354 inches tall and provides six independent channels.
Because of the inherent broadband characteristics and balanced electrical design the CA-1140-HI Series antennas are insensitive to mounting location and surrounding environment. The radome has an integral base mounting flange with coaxial Type N input connectors for each channel, located on the underside. An optional base adapter, used between the antenna base and its mounting surface, is available for installations where side cable access is desired. (Specify /SA Model)
CA-1140-HI Series antennas are designed to meet MIL-STD-167, Type I Vibration and the Service Conditions of MIL-STD-810B.
