The input impedance is 50 ohms and the VSWR is less than 2.5:1

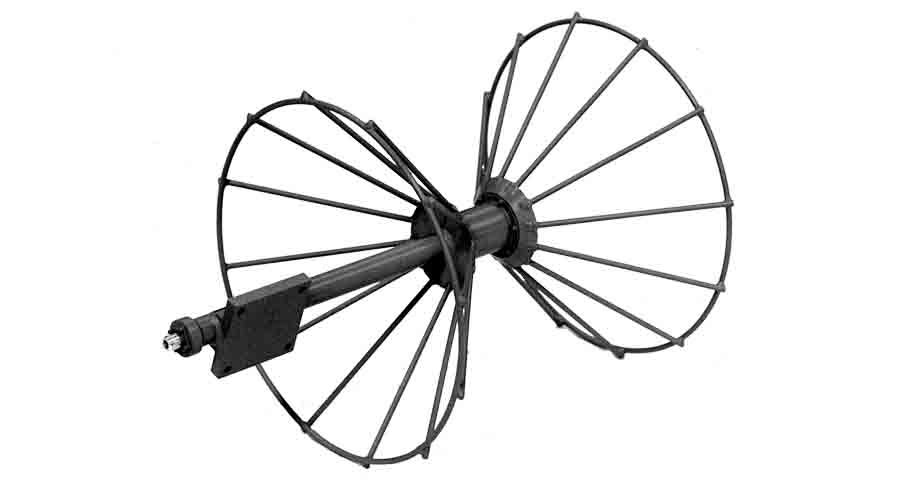

All major components of the radiating and support structures are aluminum. The central feed section is protected and weatherproofed with an epoxy fiberglass cover. Prime consideration has been given to a rugged, reliable design suitable for shipboard or other similar applications. It is designed to comply with MIL-E-16400F, Class 2.
| Frequency range | 200 – 1000 MHz |
| VSWR | 200 – 1000 MHz |
| Impedance | 50 ohms |
| Polarization | Vertical |
| Azimuth coverage | Omnidirectional |
| Zenith coverage | Figure – eight dipole pattern |
| Power handling | 250 watts |
| Input connector | Type N receptacle |
| Height Radiator Overall |
16 in. 24 in. |
| Diameter | 15.75 in max |
| Mounting | Square 3.75 x 3.75 in. plate with four 0.31 in. dia. holes |
| Weight | 6 lbs |
| Finish | Gray epoxy polyamide |
| Vibration | MIL-STD-167, Type 1 |
| Shock | MIL-S-901C, Grade A |
| Service | MIL-E-16400F, Class 2 |
