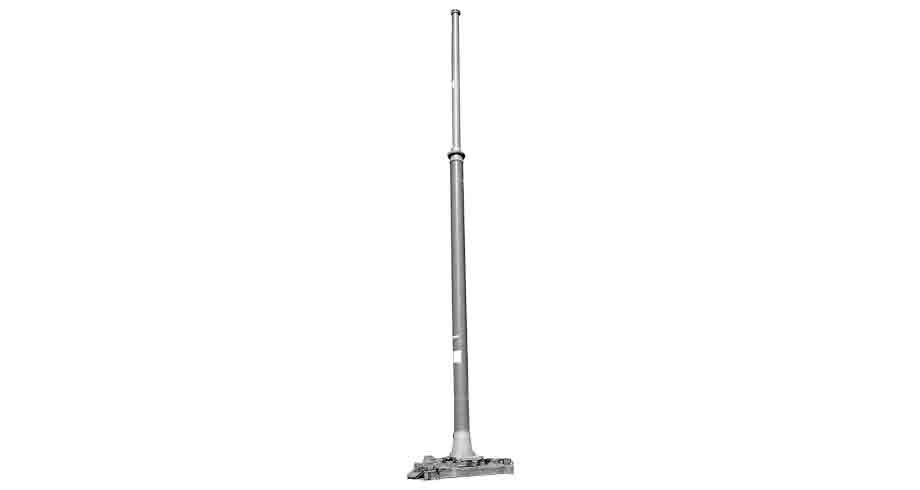

The lower antenna provides +10 dBi nominal gain and can handle power levels in excess of 8 kW, while the upper antenna provides +5 dBi and handles power levels in excess of 2 kW. To provide high-isolation, a 12-ft spacer is inserted between the two arrays.
The CA-6001 includes provisions for guy wires and has been designed to survive direct lightning strikes without damage. In addition, the CA-6001 can be pressurized to prevent corrosion and moisture intrusion.
| Frequency range | 225 – 400 MHz |
| VSWR Lower antenna Upper antenna |
1.8:1 max 2.0:1 max |
| Gain Lower antenna Upper antenna |
10 dBi nom 5 dBi nom |
| Polarization | Vertical |
| Beam width Lower antenna Upper antenna |
5.5° to 10° 32° to 36° |
| Power handling Lower antenna Upper antenna |
8 kW avg 2 kW avg |
| RF Connector Lower antenna Upper antenna |
1 5/8 EIA Flange 7/16 DIN connector |
| Weight | 700 lbs |
| Finish | Per MIL-P-24441B, Type 1 Haze Gray |
