Optional, external diplexers are available, including the FM34-Series of diplexers that can provide up to 85 dB of isolation between the VHF/UHF and L-Band frequency ranges while minimizing additional insertion losses.

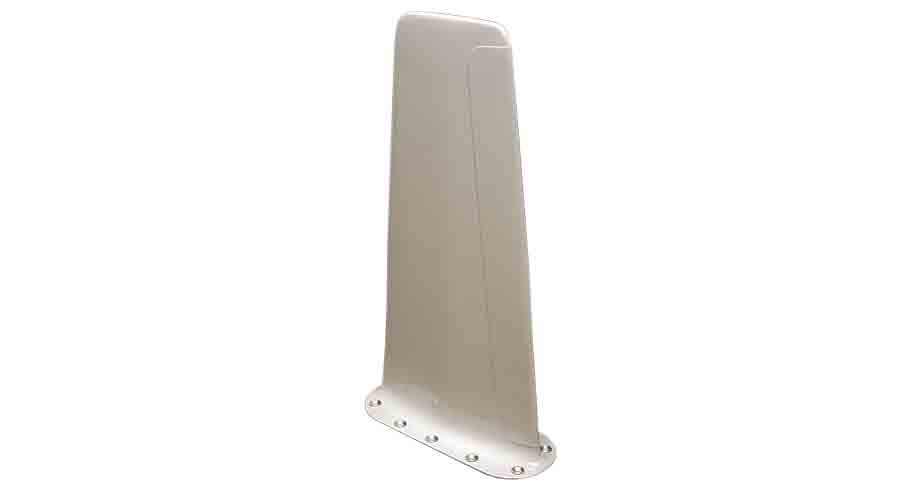

The CNI24 Series has been designed for deployment on high performance (MACH 2.0+) aircraft. The -12, -15, and -17 broadband models have been designed to support interferometer-based DF applications and are phase-matched on a 100% basis.
| CNI24-3 CNI24-9 |
CNI24-5 | CNI24-7 | CNI24-12 | CNI24-15 | CNI24-17 | |
|---|---|---|---|---|---|---|
| Frequency range | 30 – 88 MHz 108 – 174 MHz 225 – 400 MHz 950 – 1220 MHz |
118 – 174 MHz 225 – 400 MHz 950 – 1220 MHz |
30 – 88 MHz 108 – 174 MHz 225 – 400 MHz 950 – 1220 MHz |
20 – 1000 MHz | 20 – 800 MHz | 100 – 500 MHz |
| VSWR | 30 – 88 MHz, 2.5:1 108 – 174 MHz, 2.5:1 225 – 400 MHz, 2.0:1 950 – 1220 MHz, 2.0:1 |
118 – 174 MHz, 2.5:1 225 – 400 MHz, 2.0:1 950 – 1220 MHz, 2.0:1 |
30 – 88 MHz, 2.7:1 108 – 118 MHz, 2.4:1 119 – 125 MHz, 2.2:1 126 – 174 MHz, 2.0:1 225 – 400 MHz, 2.0:1 960 – 1000 MHz, 2.0:1 1000 – 1220 MHz, 1.8:1 |
20 – 30 MHz, 3.3:1 30 – 1000 MHz, 2.5:1 |
20 – 30 MHz, 3.3:1 30 – 800 MHz, 2.5:1 |
100 – 500 MHz, 2.5:1 |
| Gain | -33 dBi to 0 dBi | 0 dBi typ | -33 dBi to 0 dBi | -41 dBi to 0 dBi | -41 dBi to 0 dBi | -16 dBi to 0 dBi |
| Impedance | 50 ohms | 50 ohms | 50 ohms | 50 ohms | 50 ohms | 50 ohms |
| Polarization | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical |
| Radiation patterns | Similar to a monopole | Similar to a monopole | Similar to a monopole | Similar to a monopole | Similar to a monopole | Similar to a monopole |
| Phase matching | N/A | N/A | N/A | 20 – 500 MHz ±5° | 5° RMS | ±5° |
| Power handling | VHF 25 watts CW UHF 45 watts CW L-BAND 50 watts avg 3000 watts Peak |
VHF 25 watts CW UHF 45 watts CW L-BAND 50 watts avg 3000 watts Peak |
VHF 20 watts CW UHF 45 watts CW L-BAND 16 watts avg 4000 watts Peak |
Rx only | Rx only | Rx only |
| CNI24-3 CNI24-9 |
CNI24-5 | CNI24-7 | CNI24-12 | CNI24-15 | CNI24-17 | |
|---|---|---|---|---|---|---|
| Connector | SC Female (-3) N Female (-9) |
SC Female | SC Female | R/A TNC Female | R/A TNC Female | R/A TNC Female |
| Weight | 2.0 lbs max | 2.0 lbs max | 2.0 lbs max | 2.0 lbs max | 2.0 lbs max | 2.0 lbs max |
| Finish | Wht (-5-1), BlK (-5-2) | Grey (-7-1) | ||||
| ICD | 261D1935 (-5-1) 5002581 (-5-2) |
261D1992 (-7-1) |
