Frequency selective choking networks on the radiating element provide optimum pattern performance across all operating bands.
External diplexers are available if multiple output are required.

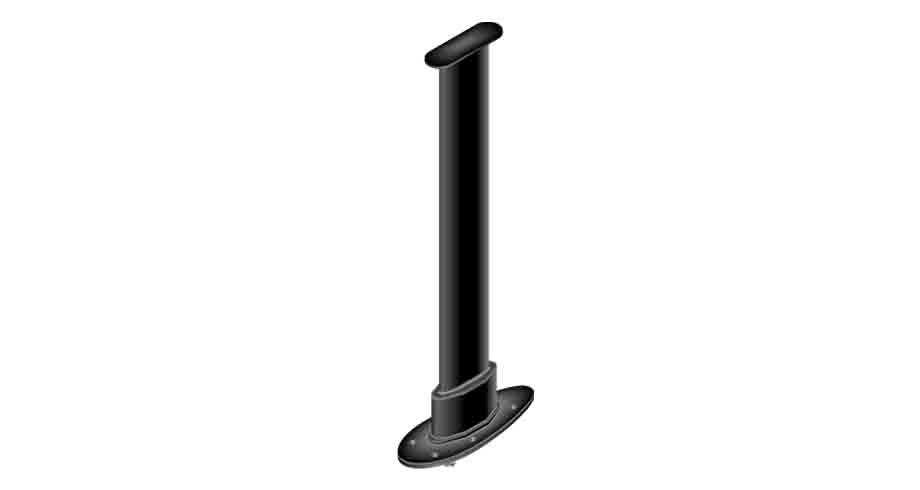

CNI37-1-1 Antenna Specifications
| Frequency range | 30 – 1220 MHz |
| VSWR | |
| 30 – 88 MHz 3.3:1 | |
| 108 – 174 MHz 3.0:1 | |
| 225 – 400 MHz 2.5:1 | |
| 960 – 1220 MHz 1.8:1 | |
| Gain (Specification) | |
| 30 – 88 MHz -17 dBi | |
| 108 – 174 MHz -4 dBi | |
| 225 – 400 MHz 0 dBi | |
| 960 – 1220 MHz +2 dBi | |
| Gain (Typical) | Consult with factory |
| Polarization | Vertical, linear |
| Impedance | 50 ohms |
| Pattern coverage | Similar to l/4 stub |
| Power handling | 25 watts CW, VHF/UHF |
| Connector | TNC Female |
| Weight | 10 lbs max |
| Finish | Flat black polyurethane |
