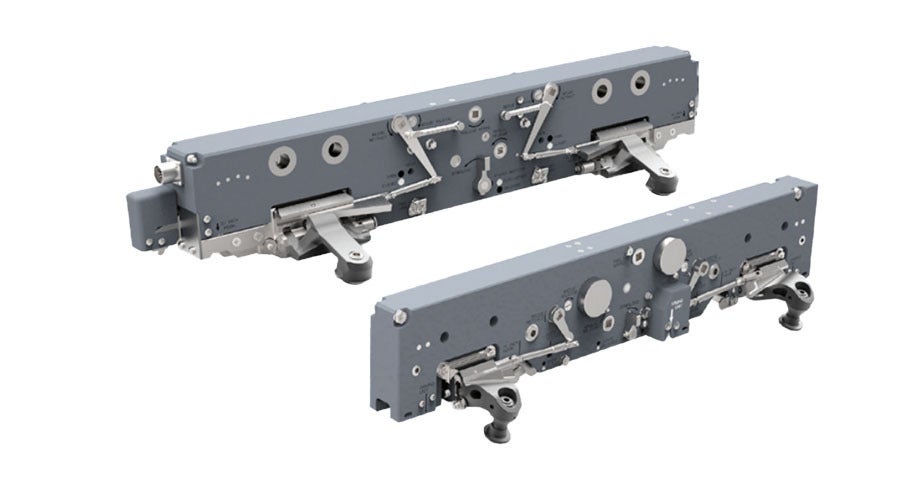

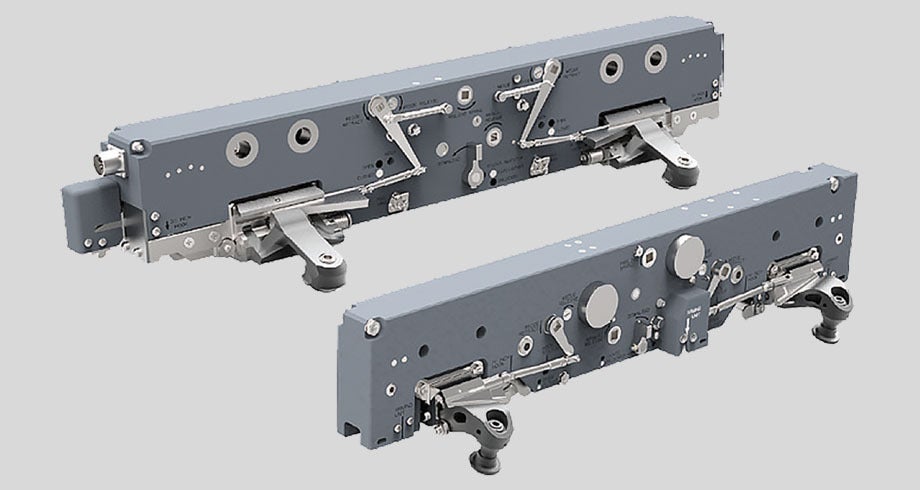

Electric Single Carriage and Release Systems

L3Harris BRUs – Fielded and combat proven

The system is optimized for light attack aircraft, helicopters and UAV’s that operate at lower speeds and G-force loadings. Maintenance and availability are improved by eliminating scheduled maintenance, additional ground support equipment, and logistics associated with pyrotechnic charges and high-pressure pneumatics. Electric BRU technology reduces complexity and weight, and is compatible with aircraft that traditionally utilize gravity release systems. Additionally, sortie turn-around time is decreased by eliminating the need to change and clean pyrotechnics or connect to ground pressure systems between and at the end of missions.

L3Harris’ Electric BRUs leverage lessons learned from the design and production of more than 35,000 systems over the last 40 years.

Electric Single Carriage and Release Systems Specifications

Specifications
Weapon Release Rack BRU-14/30” BRU-14”
Dimensions 36.0” L x 3.0” W x 6.3” H 27.0” L x 2.0” W x 5.1” H
Weight <70 pounds <30 pounds
Complies with MIL-STD-2088B Yes Yes
Compatible with 250-, 500-, 1000- & 2000-pound class weapons All 250-, 500- & 1000-pound class weapons
Environmentally evaluated for vibration, shock, acceleration,
temperature, humidity, salt fog, pressure, & EMI requirements
Yes Yes
Operable in CBRNE protective gear Yes Yes
  • Performance without pyrotechnic or pneumatic systems means reduced ground operations times between sorties
  • Familiar user interface facilitates rapid training and confident use by loaders
  • Upload and download tasks are performed with just one hand, keeping a hand free for loader’s stability and safety

Brochures and Catalogs

  • L3Harris Release Systems Catalog

    Release Systems Product Catalog
