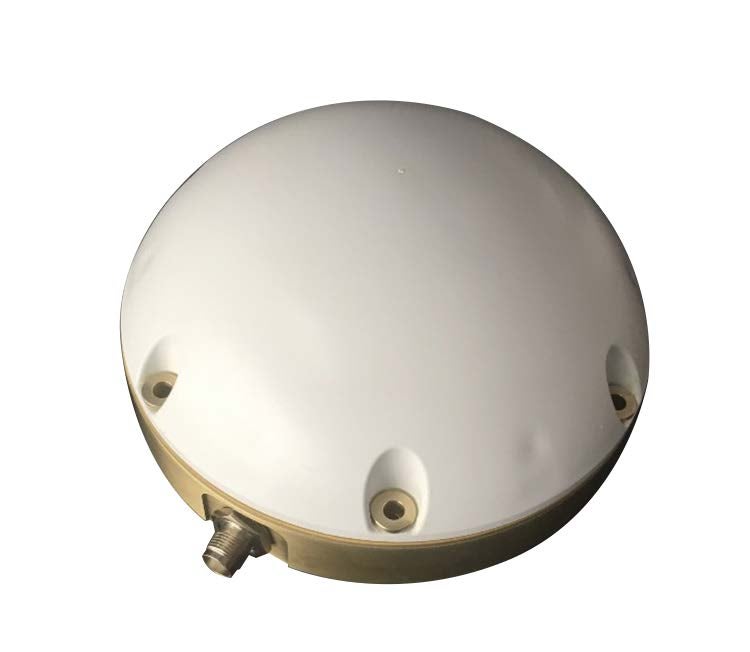

Monopatch Antenna

CLEAR LINE-OF-SIGHT COMMUNICATION

The unique design of the antenna creates a three-dimensional hemispherical pattern with full 360-degree azimuthal and 180-degree elevation coverage. The Monopatch Antenna is well suited for a variety of missions and applications, especially for use with relay or terminal nodes in mobile ad hoc network (MANET) systems. With full azimuthal and elevation coverage, the warfighter can maintain clear line-of-sight communication in challenging terrain environments. In addition, loitering aircraft or unmanned aerial vehicles can operate at greater standoff distances when deployed as air relay assets.

SUCCESSFUL TRACK RECORD

The Monopatch Antenna has been successfully deployed on light aircraft, helicopters and ground vehicles with two of the most commonly utilized commercially available MANET radios. Future developments for the antenna include additional L and S band versions, MIMO and TSMx compatibility. The Monopatch Antenna is currently available in two frequency ranges for use with commercially available MANET radios: 1) a dual frequency version in the L/S bands (NATO D/E) and 2) a wider S band version (NATO E band). The antenna uses a common aluminum housing and dome cover with two options for location of the TNC(F) connector.

SPECIFICATIONS

Download Monopatch Antenna Sell Sheet

Choose tab:

Electrical
	FA00431-01 FA00437-01	FA00432-01 FA00438-01
Frequency range	1.74-1.84 GHz 2.14-2.3 GHz	2.2-2.5 GHz
Peak efficiency	79%	85%
Peak gain	5 dB	5 dB
VSWR	< 3:1	< 2:1
Impedence	50 ohms	50 ohms
Polarization	Hybrid	Hybrid

Mechanical
Size	Size 6" d x 3” h
Weight	1.4 lbs
Connector	TNC (F) see table
Top attach	6X 7075-T6 bushings 0.200" clearance holes
Bottom attach	5 X #8-32 threaded inserts
Magnets	20 lbs (side connector versions)
Radome	Chemically resistant, high impact plastic (white)
Housing 6061-T6	MIL-DTL-5541, CI 1A

Qualification Testing
MIL STD 810G	501.6 storage temperature, high (85 C)
MIL STD 810G	502.6 storage temperature, low (-55 C)
MIL STD 810G	507.6 humidity, Procedure II (aggravated, 10 days)
MIL STD 810G	514.7 vibration, category 9 CH47D, UH-60 combined, external stores CH47D, UH-60 combined, external stores (sine on random, 4hrs each axis)

Connector Options
	Side	Bottom
FA00431-01	X
FA00432-01	X
FA00437-01		X
FA00438-01		X
