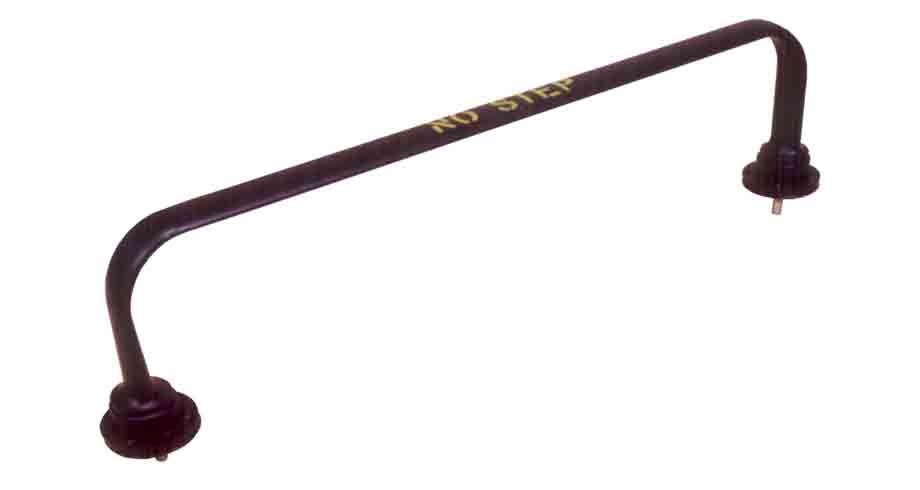

The N15 Series are all metal designs erosion resistant weighing 3.0 lbs or less.
Each of the N15 antennas are fitted with BNC terminals at each end, allowing comparability with AN/ARC-54 lobe switching homing system.
N15 Series Antenna Specifications
| N15-1 | N15-6 | N15-15 | |
|---|---|---|---|
| Frequency range | 30 – 76 MHz | 116 – 156 MHz | 30 – 88 MHz |
| VSWR | 5.0:1 | 5.0:1 | 5.0:1 |
| Impedence | 50 ohms | 50 ohms | 50 ohms |
| Polarization | Vertical | Vertical | Vertical |
| Radiation patterns | Cardiodal | Cardiodal | Cardiodal |
| Power handling | 500 watts CW, 1 kW Peak | 100 watts Avg | 250 watts CW |
| N15-1 | N15-6 | N15-15 | |
|---|---|---|---|
| Connector | UG 88E/U | UG 88E/U | TNCUG 88E/U |
| Weight | < 3 lbs | < 3 lbs | < 3 lbs |
