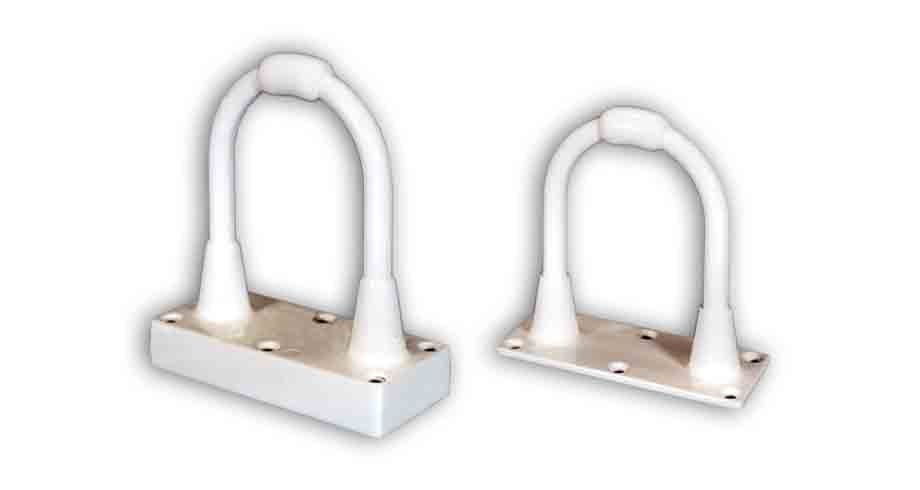

N25 Series Glide Slope Antenna

The N25-2 is a dual connector version which incorporates a hybrid. This circuitry effectively isolates the two associated receiving systems providing protection against disablement of both systems in the event of failure in one system. The radiation pattern associated with each N25-2 antenna port is identical, so that no coupler drop-out problem during automatic landing occurs.

All N25 Series antennas provide complete lightning protection for the associated receivers. They are suitable for mounting either externally, or within a nose radome. The inherent 180° pattern beam may be modified slightly by the geometry surrounding the installation. The N25 antennas are recommended for installations in close proximity to radar dish installations since the antenna’s (glide slope) sensitivity is relatively unaffected by dish motion.

N25 Series Antenna Specifications

Electrical
Frequency range 329 – 335.3 MHz
VSWR
N25-1 5:1
N25-2 3:1
N25-3 (AT-983) 3:1
Gain 0 dB
Impedance 50 ohms
Polarization Horizontal
Power handling Receive only
Mechanical
Connector
N25-1 Type TNC Female
N25-2 Type C Female
N25-3 (AT-983) Pressurized Type N Female
Weight
N25-1 8 oz (0.23 kg)
N25-2 14 oz (0.39 kg)
N25-3 (AT-983) 8 oz (0.23 kg)
Type of constructions All aluminum with dielectric sealed feed
Environmental
Military Qualified for vibration, humidity, temperature-\altitude shock and salt spray per MIL-T-5422E
FAA TSO C34b
