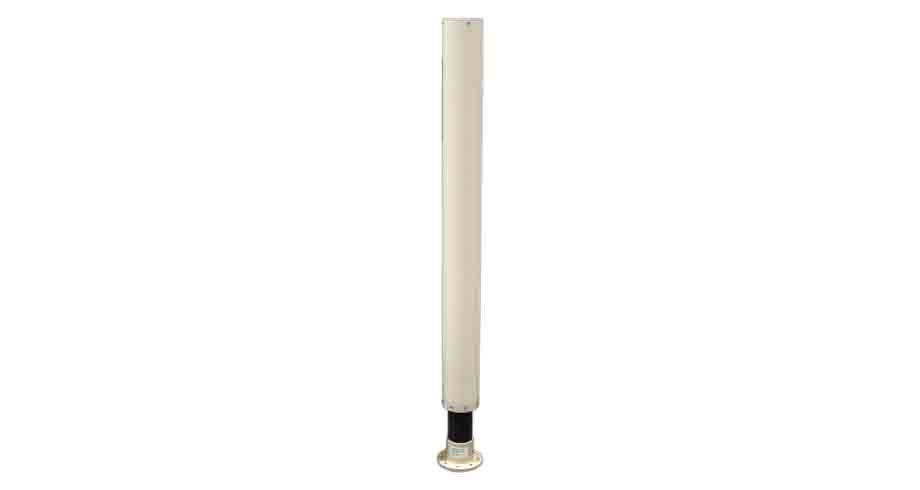

The low frequency aperture provides omni-directional coverage at the lower VHF bands with high gain performance by utilizing an efficient matching network. The upper frequency aperture is comprised of stacked dipole elements located near the top of the assembly avoiding potential blockage by the vehicle. The Q182 utilizes a proven assembly which is based on the Q71 JTIDS antenna. The design also incorporates a unique spring damper assembly that prevents the antenna from oscillating after an impact.
Q182 Antenna Specifications
| Q182-1-X Port 1 |
Q182-1-X Port 2 |
Q182-1-X Port 3 |
Q182-2-X (Internal Diplexer) Port 1 |
Q182-2-X (Internal Diplexer) Port 2 |
|
|---|---|---|---|---|---|
| Frequency range | 25-100 MHz | 100-600 MHz | 600-6000 MHz | 25-600 MHz | 600-6000 MHz |
| VSWR | 3.5:1 | 3.5:1 100-115 MHz 3.0:1 115-600 MHz |
3.0:1 | 3.5:1 | 3.5:1 |
| Azimuth Pattern | Omni-directional | Omni-directional | Omni-directional | Omni-directional | Omni-directional |
| Elevation Pattern | Figure eight | Figure eight | Figure eight | Figure eight | Figure eight |
| Power handling | 50 watts | 200 watts | 150 watts | 250 watts | 150 watts |
| Q182-1-X Port 1 |
Q182-1-X Port 2 |
Q182-1-X Port 3 |
Q182-2-X (Internal Diplexer) Port 1 |
Q182-2-X (Internal Diplexer) Port 2 |
|
|---|---|---|---|---|---|
| Connector | N Female | TNC Female | TNC Female | N Female | TNC Female |
| Weight | 17 lbs | 17 lbs | 17 lbs | 17 lbs | 17 lbs |
| Finish | -1 desert sand CARC, -2 green CARC | -1 desert sand CARC, -2 green CARC | -1 desert sand CARC, -2 green CARC | -1 desert sand CARC, -2 green CARC | -1 desert sand CARC, -2 green CARC |
| Operating temperature | -40° C to +55° C |
