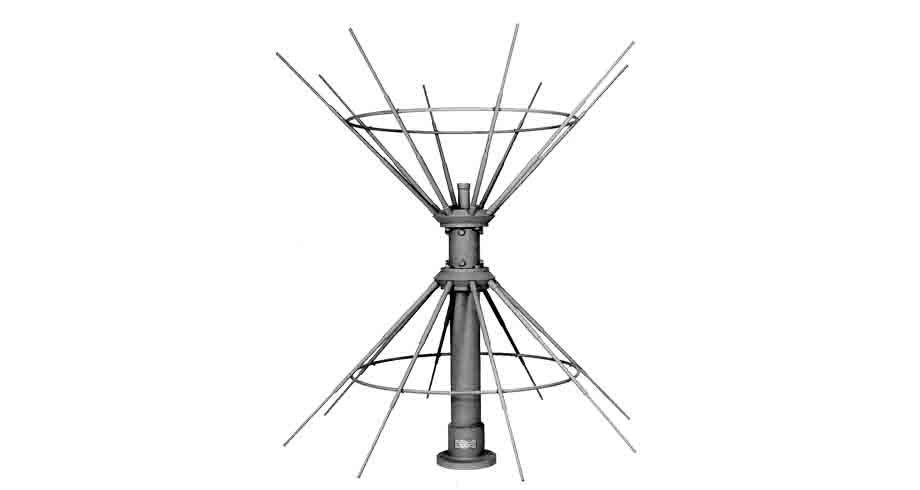

CA-3597 Broadband Biconical VHF/UHF Dipole Antenna

The rugged unit provides reliable operation in extreme military shipboard and ground station environments.

The antenna is a balanced, center-fed biconical dipole which does not require a groundplane or counterpoise for operation. The zenith pattern is a figure-eight with maximum signal intensity along the horizon. The input VSWR, on 50 ohms, is less than 6.0:1 over the entire frequency band and less than 4.0:1 at all frequencies above 55 MHz.

All major components of the radiator and support structure are aluminum. The central feed and transformer sections are enclosed and sealed within a weatherproof epoxy fiberglass cover. The RF input connector is a Type N receptacle recessed within the base.

CA-3597 has been designed to meet the High Impact Shock requirements of MIL-S-901C, Grade A; Nuclear Air Blasts of 10 psi peak overpressure; MIL-STD-167, Type 1; and all Service Conditions of MIL-E-16400F for Class 2 equipment.

CA-3597 Specifications

Electrical
Frequency range 30 – 1300 MHz
VSWR 6.0:1 max all frequencies; 4.0:1 max above 55 MHz
Impedance 50 ohms
Polarization Vertical
Azimuth coverage Omnidirectional
Zenith coverage Figure-eight dipole pattern with max at horizon
Power handling Receive only
Mechanical
Connector Type N receptacle
Weight 21 lbs
Height
  Radiator
  Overall

35.68 in
38.5 in
Diameter 34.5 in. max
Mounting Base flange with six 0.40 in. diameter holes on a 4.75 in. diameter bolt circle
Finish Gray epoxy polyamide
Environmental
Vibration MIL-STD-167, Type 1
Shock MIL-S-901C, Grade A
Nuclear Air Blast 10 psi peak overpressure
Service MIL-E-16400F, Class 2
